Maxpro Hardwares

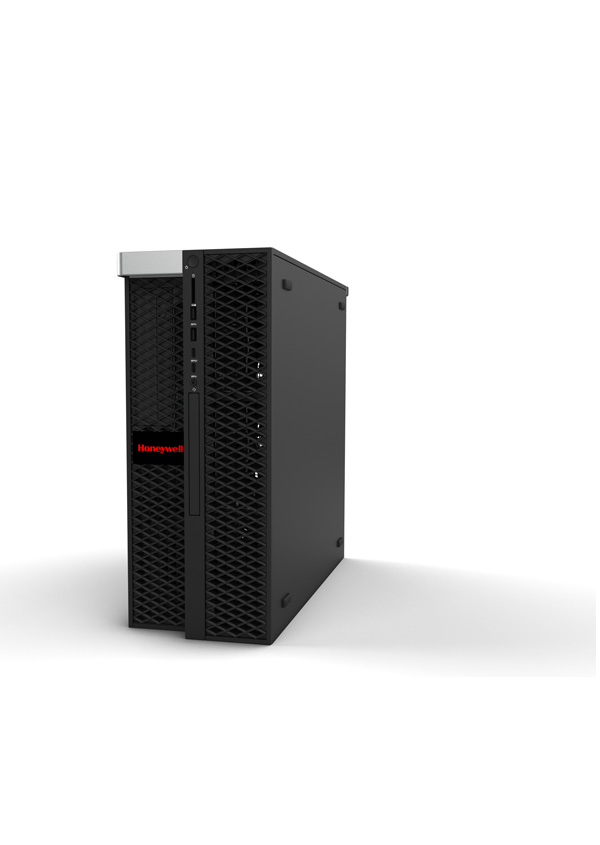

HNMSE00IB00T

MAXPRO NVR: STANDARD EDITION (SE)

Honeywell’s MAXPRO NVR SE is an open, flexible and scalable IP video surveillance system. Utilising Honeywell’s high definition cameras, this NVR offers a powerful IP recording system and viewing client for small to medium-size surveillance installations.

Features

• Provides the processor and storage enclosure in one chassis, resulting in both space and cost savings
• Record and monitor up to 64 channels at 1920 fps @ 4CIF/VGA or 1920 fps @ 720p HD or 1600 fps @ 1080p Full HD (4 Mbps bitrate) per MAXPRO NVR SE. Network bandwidth/throughput supported per NVR with Incoming: 256 Mbps, Outgoing: 320 Mbps; Total: 576 Mbps.
• Archival support of 16 channels @ 4 Mbps bitrate each/64 Mbps total archival throughput capacity per MAXPRO NVR SE, with outgoing archival storage throughput of 200 Mbps
• Multi-stream support with maximum 128 streams per
  MAXPRO NVR SE. Support for configuring 1 preferred stream
  for continuous recording and 1 preferred streamfor live video /
  motion based recording per camera

Download Brochure

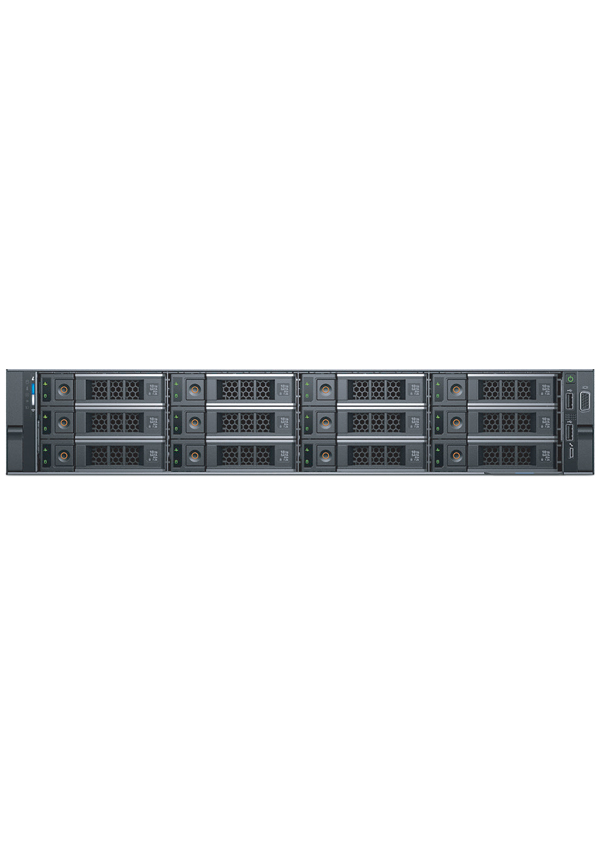

HNMPE00II000T0

The MAXPRO NVR PE integrates to a full line of Honeywell IP cameras and HVE encoders to provide a highly scalable IP video surveillance system for enterprise use. Easy to install and use, this NVR offers multi-stream support and also supports simultaneous recording, live monitoring, search and system management. With its next-gen internal architecture and external acoustic design, the MAXPRO NVR is fully capable of handling the demands of current video surveillance solutions from Honeywell.

Features

• Integrates to full line of Honeywell IP cameras and HVE encoders
• Support for up to 256 streams
• Support for ONVIF Profile S, PSIA, real time streaming protocol (RTSP) standards
• Keyboard control with UltraKey Plus and UltraKey Lite over Ethernet
• Archival support of 25 channels @ 4 Mbps bitrate each/100Mbps total archival throughput capacity per NVR
• User-friendly 3-Click wizard for quick and efficient IP system install

Download Brochure

HNMHWCL/HNRHWCL

MAXPRO® SERIES CLIENT

The MAXPRO VMS & NVR is built upon the best in class components that provide the flexibility and scalability to design a video system suited to a variety of end user applications. Honeywell is a total solution provider and offers all the components of a reliable and powerful video system including cameras, encoders, management software, servers, workstations, and video storage.

Features

• Utilizes Intel® Enterprise Q470 Enterprise Chipset technology for high performance
• Pre-installed Maxpro client application reducing the site commissioning time
• 16 GB of DDR4 RAM
• 500 GB hard disk
• Small Form Factor
• Dual monitor capability

Download Brochure

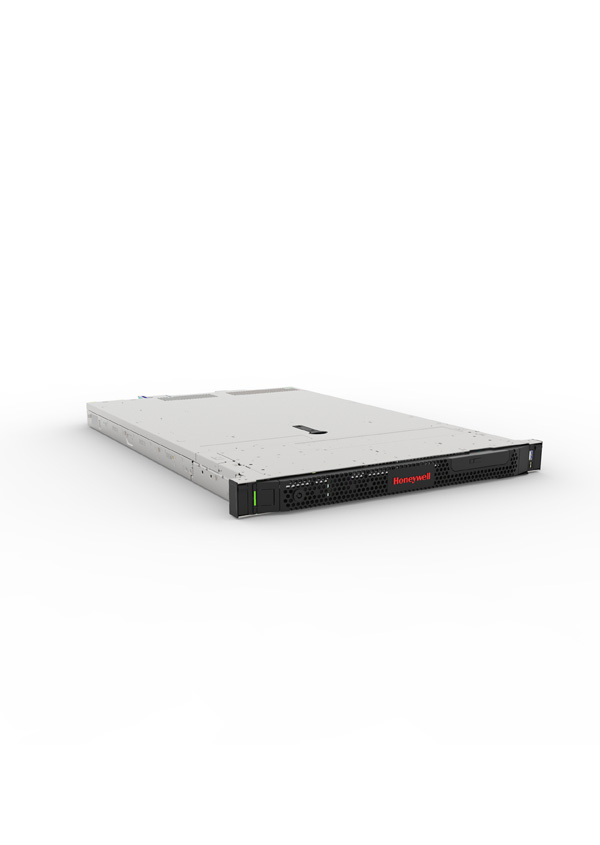

HNMHWVMS

MAXPRO NVR: STANDARD EDITION (SE)

Powered by the latest Intel® Xeon® processor family, the MAXPRO VMS Server delivers the right mix of performance, redundancy and value in a 1U chassis.

Video Management System

Honeywell’s MAXPRO VMS (video management system) controls multiple sources of video subsystems to collect, manage and present video in a clear and concise manner. MAXPRO VMS supports emerging technologies in the industry, like 4K resolution, H.265 video compression codec, multi-imager cameras and fisheye cameras.

MAXPRO VMS Server supports instances for failure of power supply, network or harddisk through built-in redundant and failover feature which can continue to support the system functions with minimal interruption.

MARKET OPPORTUNITIES

MAXPRO VMS is ideal for facilities requiring at-risk critical infrastructure protection such as airports, seaports, large multi-site commercial buildings, casinos, and other high-profile facilities. It is the perfect client-server video management solution for locations requiring the use of both digital and analog technologies.

Download Brochure
