Pro3200 professional series controllers

Packed with innovative technological features, Honeywell’s PRO3200 series of intelligent controllers and dual reader modules are suitable for a wide variety of applications. The PRO3200 system supports up to 16 readers per enclosure and 32 readers per intelligent controller, and has a capacity of up to 100,000 cards to provide a scalable, low-cost setup irrespective of the installation type.

The dual reader module interfaces with the intelligent controller to provide a customisable access control system. In the event that communication to the intelligent control module is lost, the card’s access reader can be individually configured to allow entrance based on security needs.

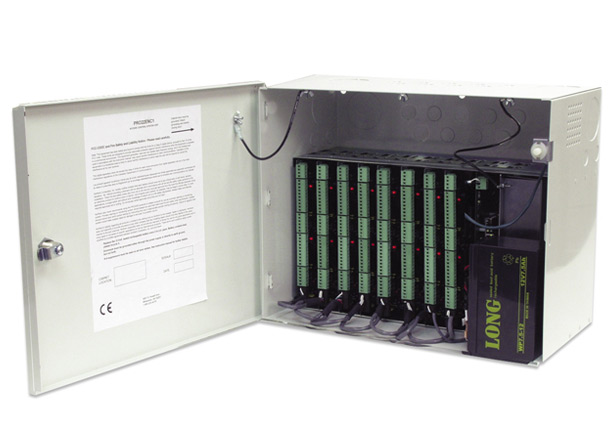

PRO3200 INTELLIGENT CONTROLLER (PRO32IC)

Real-time operations, intelligent feature set

Designed to operate without a PC, the Intelligent Controller is at the heart of the PRO3200 system and provides real time processing for connected I/O interfaces. It can be connected to a WIN-PAK host computer using direct serial communication, dial-up modem or TCP/IP network connection. The controller PRO3200 comes with Access Control Device Server Manager (ACDSM) which is a built-in web server through which its network and other system settings can be configured.

Features
  • Battery-backed memory to store event log buffer
  • On-board real-time clock
  • Up to 50,000 transactions stored when host is offline
  • Support for up to 300,000 cards
  • On-board 10-BaseT/100Base-TX Ethernet port to communicate configuration data and event/status reports to host
Download Brochure

PRO3200 DUAL READER MODULE (PRO32R2)

Easy to upgrade to accommodate future growth

With connections for Wiegand or Clock/Data type readers, supervised inputs and relay outputs, the PRO32R2 dual reader module supports up to two access control doors. It can be mounted either in a rack or laid open and flat. When communication to the control panel is lost, the module can grant access based on facility code, making this a highly-flexible access control solution for different types of facilities.

Features
  • 2 on-board LEDs provide status information and reader activity updates
  • Anti-passback support
  • Modular hardware architecture
  • 2 dedicated alarm inputs for power loss and tamper detection
  • Buzzer support only with one-wire LED control
  • 8 user-programmable alarm inputs
  • Meets requirements for UL294 and CUL standards
Download Brochure

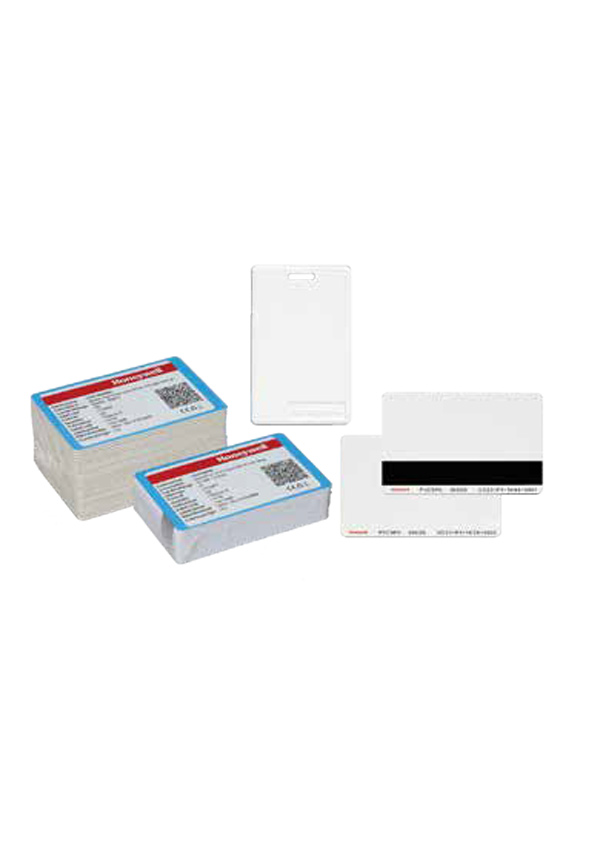

PX4: OMNIPROX CLAMSHELL CARD

ABS shell construction with PVC insert

Designed with durable clamshell form factor, the OmniProx clamshell card from Honeywell is based on 125 kHz technology, utilises RFID and provides excellent contactless sensing range.

Features
  • Max read range: 2.125"" to 3.37""
  • Robust ABS shell construction resists cracking and breaking
  • External numbering for easy identification and control
  • Operating temperature: -95° – 140°F (-35° – 60°C)
Download Brochure
